In the industrial sector, understanding the importance of components that are seemingly small yet critical, such as flat rubber gaskets, is essential. These discrete parts play a crucial role in various industrial equipment and machinery, ensuring efficient and long-lasting operation.
At Comdiflex, we manufacture and distribute high-quality sealing gaskets. This guide explains their applications and how rubber gaskets function within the industry.

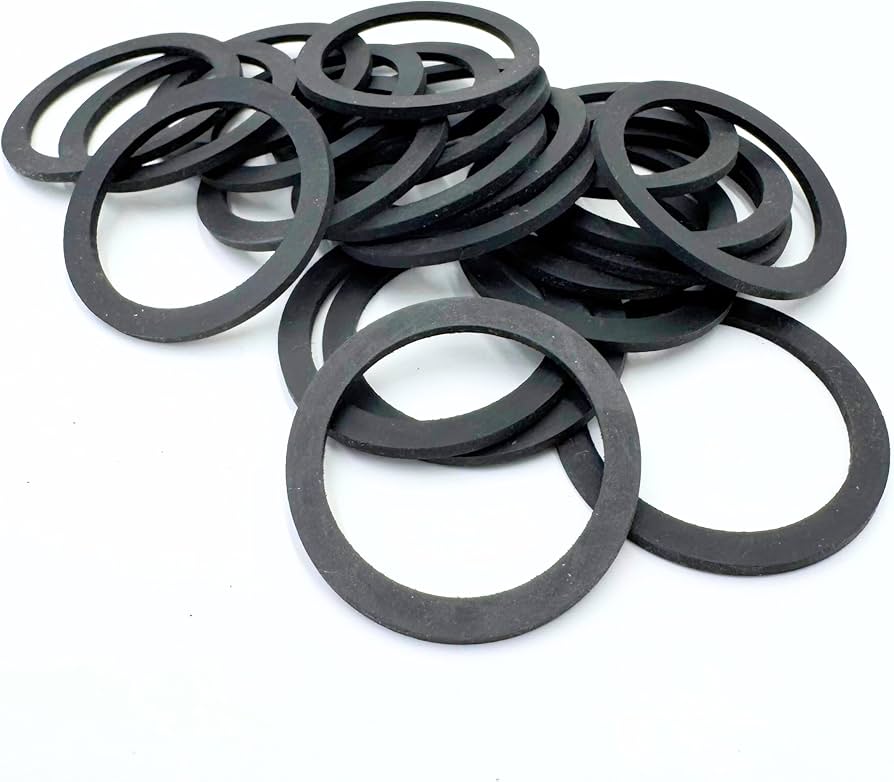

What are rubber gaskets?
Flat rubber gaskets are essential industrial components designed to seal and join two surfaces, preventing the leakage of liquids or gases.
-
Materials: They are typically made from elastomeric materials, such as rubber, which provide flexibility and compressibility.
-
Common Options: Neoprene and EPDM are frequent choices due to their resistance to temperature and various chemicals.
-
Functionality: Their elastomeric composition allows the gaskets to adapt to surface irregularities, guaranteeing an effective seal.
The importance of flat rubber gaskets
These gaskets are key components in industrial systems due to their reliable sealing properties and adaptability. Their importance lies in three main areas:
Leak prevention
Their primary function is to act as impermeable barriers in piping systems, heavy machinery, or processing equipment, preventing fluid or gas loss that could compromise operational efficiency.
Conformity to irregular surfaces
Their flat design and composition allow them to adapt to uneven joining surfaces, ensuring a uniform seal even when surfaces are not perfectly smooth.
Extending equipment lifespan.
By preventing leaks and ensuring proper sealing, rubber gaskets significantly prolong the life of industrial systems. They reduce premature wear caused by leaks and minimize damage from the intrusion of unwanted substances.
Types of flat gaskets
There are several types of flat rubber gaskets, each adapted to specific operating conditions:
EPDM
High resistance to UV radiation, ozone, and extreme weather. Capable of withstanding a wide temperature range.
Neoprene
Excellent resistance to aging, chemicals, and abrasion. Maintains flexibility over time even in adverse conditions.
Silicone
Known for exceptional thermal resistance and electrical insulation properties; ideal for high-temperature applications.
Nitrile
Stands out for its resistance to oils and fuels, making it suitable for hydraulic systems.
Viton
Made from fluorocarbon elastomer, offering superior chemical and thermal resistance for aggressive environments.
Our rubber gasket catalogue
At Kempchen Comdiflex, we manufacture and supply various types of flat rubber gaskets to adapt to the specific needs of every industrial application.
Below, we present our range of available rubber gaskets.
| CR- NEOPRENE 1.200 x 10 MTS x 1 mm |
| CR- NEOPRENE 1.200 x 10 MTS x 1,5 mm |
| CR- NEOPRENE 1.200 x 10 MTS x 2 mm |
| CR- NEOPRENE 1.200 x 10 MTS x 3 mm |
| CR- NEOPRENE 1.200 x 10 MTS x 4 mm |
| CR- NEOPRENE 1.200 x 10 MTS x 5 mm |
| Available in 1,400 mm width. Consult for other thicknesses. |
| EPDM 1.200 x 10 MTS x 1 mm |
| EPDM 1.200 x 10 MTS x 1,5 mm |
| EPDM 1.200 x 10 MTS x 2 mm |
| EPDM 1.200 x 10 MTS x 3 mm |
| EPDM 1.200 x 10 MTS x 4 mm |
| EPDM 1.200 x 10 MTS x 5 mm |
| EPDM 1.200 x 10 MTS x 6 mm |
| NATURAL RUBBER 1.200 x 10 MTS x 1 mm |
| NATURAL RUBBER 1.200 x 10 MTS x 1,5 mm |
| NATURAL RUBBER 1.200 x 10 MTS x 2 mm |
| NATURAL RUBBER 1.200 x 10 MTS x 3 mm |
| NATURAL RUBBER 1.200 x 10 MTS x 4 mm |
| NATURAL RUBBER1.200 x 10 MTS x 5 mm |
| NBR (NITRILE)1.200 x 10 MTS x 1 mm |
| NBR (NITRILE)1.200 x 10 MTS x 1,5 mm |
| NBR (NITRILE)1.200 x 10 MTS x 2 mm |
| NBR (NITRILE)1.200 x 10 MTS x 3 mm |
| NBR (NITRILE)1.200 x 10 MTS x 4 mm |
| NBR (NITRILE)1.200 x 10 MTS x 5 mm |
| NBR (NITRILO)1.200 x 10 MTS x 6 mm |
| NBR (NITRILE) FOOD GRADE 1.200 x 10 MTS x 1 mm |
| NBR (NITRILE) FOOD GRADE 1.200 x 10 MTS x 1,5 mm |
| NBR (NITRILE) FOOD GRADE 1.200 x 10 MTS x 2 mm |
| NBR (NITRILE) FOOD GRADE 1.200 x 10 MTS x 3 mm |
| NBR (NITRILE) FOOD GRADE 1.200 x 10 MTS x 4 mm |
| NBR (NITRILE) FOOD GRADE 1.200 x 10 MTS x 5 mm |
| NBR (NITRILE) FOOD GRADE 1.200 x 10 MTS x 6 mm |
| SBR 1.200 x 10 MTS x 1 mm |
| SBR 1.200 x 10 MTS x 1,5 mm |
| SBR 1.200 x 10 MTS x 10 mm |
| SBR 1.200 x 10 MTS x 2 mm |
| SBR 1.200 x 10 MTS x 3 mm |
| SBR 1.200 x 10 MTS x 4 mm |
| SBR 1.200 x 10 MTS x 5 mm |
| SBR 1.200 x 10 MTS x 6 mm |
| SBR 1.200 x 10 MTS x 8 mm |
| SILICONE 1.200 x 10 MTS x 1 mm |
| SILICONE 1.200 x 10 MTS x 1,5 mm |
| SILICONE 1.200 x 10 MTS x 2 mm |
| SILICONE 1.200 x 10 MTS x 3 mm |
| SILICONE 1.200 x 10 MTS x 4 mm |
| SILICONE Blue Metal-Detectable 1.200 x 10 MTS x 3 mm |
| VITON 1.200 x 10 MTS x 1 mm |
| VITON 1.200 x 10 MTS x 1,5 mm |
| VITON 1.200 x 10 MTS x 2 mm |
| VITON 1.200 x 10 MTS x 3 mm |
| CELULLAR RUBBER |
| CORK-RUBBER |
Industrial applications of rubber gaskets
Heavy machinery
Used in critical joints, such as hydraulic and pneumatic systems in excavators and bulldozers, to ensure reliable performance.
Piping systems
Crucial for airtight seals in water, gas, or chemical pipes, reducing material loss and ensuring system efficiency.
Processing equipment
Fundamental in the food and chemical sectors to prevent cross-contamination and guarantee product quality through hermetic sealing.
